GA-890FXA-UD7




CPU

1. Support for Socket AM3 processors: AMD Phenom™ II processor / AMD Athlon™ II processor

Front Side Bus

1. 5200 MT/s

Chipset

1. North Bridge: AMD 890FX
2. South Bridge: AMD SB850

Memory

1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
2. Dual channel memory architecture
3. Support for DDR3 2000(OC)/1333/1066 MHz memory modules

Audio

1. Realtek ALC889 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for Dolby Home Theater
5. Support for S/PDIF In/Out
6. Support for CD In

LAN

1. 2 x Realtek 8111D chip (10/100/1000 Mbit)
2. Support for Teaming
3. Support for Smart Dual LAN

Expansion Slots

1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) (Note 2)
2. 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2) (Note 2)
3. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (Note 3)
(All PCI Express slots conform to PCI Express 2.0 Standard.)
4. 1 x PCI slot

Multi-Graphics Technology

1. Support for 2-way/ 3-way/ 4-way ATI CrossFireX™ technology

Storage Interface South Bridge:

1. 6 x SATA 6Gb/s connectors supporting up to 6 SATA 6Gb/s devices
2. Support for SATA RAID 0, RAID 1, RAID5, RAID 10 and JBOD

* SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration.

GIGABYTE SATA2 Chip:

1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
2. 2 x SATA 3Gb/s connectors supporting up to 2 SATA 3Gb/s devices
3. Support for SATA RAID 0, RAID 1, and JBOD

JMicron JMB362 chip:

1. 2 x eSATA 3Gb/s connectors (eSATA/USB Comobo) on the back panel supporting up to 2 SATA 3Gb/s devices
2. Support for SATA RAID 0, RAID 1 and JBOD

ITE 8720 chip:

1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB South Bridge:

1. Up to 14 USB 2.0/1.1 ports (8 on the back panel, including 2 eSATA/USB Combo, 6 via the USB brackets connected to the internal USB headers)

NEC D720200F1 Chip:

1. Up to 2 USB 3.0/2.0 ports on the back panel

* USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration.
IEEE 1394 T.I. TSB43AB23 chip

1. Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x floppy disk drive connector
4. 1 x IDE connector
5. 2 x SATA 3Gb/s connectors
6. 6 x SATA 6Gb/s connectors
7. 1 x CPU fan header
8. 2 x system fan header
9. 1 x North Bridge fan header
10. 1 x power fan header
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x CD In connector
14. 1 x S/PDIF In header
15. 1 x S/PDIF Out header
16. 1 x IEEE 1394a header
17. 3 x USB 2.0/1.1 headers
18. 1 x serial port header
19. 1 x parallel port header
20. 1 x clearing CMOS jumper
21. 1 x clearing CMOS button
22. 1 x power button
23. 1 x reset button

Back Panel Connectors

1. 1 x PS/2 keyboard/ mouse port
2. 1 x optical S/PDIF Out connector
3. 1 x coaxial S/PDIF out connector
4. 2 x IEEE 1394a port
5. 6 x USB 2.0/1.1 ports
6. 2 x USB 3.0/2.0 ports
7. 2 x eSATA/USB Combo connectors
8. 2 x RJ-45 port
9. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

I/O Controller

1. ITE IT8720 chip

H/W Monitoring System voltage detection

1.
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU overheating warning
5. CPU/System fan fail warning
6. CPU/System fan speed control (Note 4)

BIOS

1. 2 x 8 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress BIOS Rescue
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune (Note 5)
8. Support for Easy Energy Saver
9. Support for Smart Recovery
10. Support for Auto Green
11. Support for ON/OFF Charge
12. Support for Q-Share

Bundle Software

1. Norton Internet Security (OEM version)

Operating System

1. Support for Microsoft Windows 7/ Vista/ XP

Form Factor

1. XL-ATX Form Factor; 32.5cm x 24.4cm

GA-890FXA-UD5




CPU

1. Support for Socket AM3 processors: AMD Phenom™ II processor / AMD Athlon™ II processor

Hyper Transport Bus

1. 5200 MT/s

Chipset

1. North Bridge: AMD 890FX
2. South Bridge: AMD SB850

Memory

1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
2. Dual channel memory architecture
3. Support for DDR3 2000(OC)/1333/1066 MHz memory modules

Audio

1. Realtek ALC889 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for Dolby Home Theater
5. Support for S/PDIF In/Out
6. Support for CD In

LAN

1. 2 x Realtek 8111D chip (10/100/1000 Mbit)
2. Support for Teaming
3. Support for Smart Dual LAN

Expansion Slots

1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) (Note 2)
2. 1 x PCI Express x16 slots, running at x8 (PCIEX8) (Note 3)
3. 1 x PCI Express x16 slots, running at x4 (PCIEX4)
4. 2 x PCI Express x1 slot (All PCI Express slots conform to PCI Express 2.0 Standard.)
5. 1 x PCI slot

Multi-Graphics Technology

1. Support for 2-way/ 3-way ATI CrossFireX™ technology

Storage Interface South Bridge:

1. 6 x SATA 6Gb/s connectors supporting up to 6 SATA 6Gb/s devices
2. Support for SATA RAID 0, RAID 1, RAID5, RAID 10 and JBOD

* SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration.

GIGABYTE SATA2 Chip:

1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
2. 2 x SATA 3Gb/s connectors supporting up to 2 SATA 3Gb/s devices
3. Support for SATA RAID 0, RAID 1, and JBOD

JMicron JMB362 chip:

1. 2 x eSATA 3Gb/s connectors (eSATA/USB Comobo) on the back panel supporting up to 2 SATA 3Gb/s devices
2. Support for SATA RAID 0, RAID 1 and JBOD

ITE 8720 chip:

1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB South Bridge:

1. Up to 14 USB 2.0/1.1 ports (8 on the back panel, including 2 eSATA/USB Combo, 6 via the USB brackets connected to the internal USB headers)

NEC D720200F1 Chip:

1. Up to 2 USB 3.0/2.0 ports on the back panel

* USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration.
IEEE 1394 T.I. TSB43AB23 chip

1. Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)


Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x floppy disk drive connector
4. 1 x IDE connector
5. 2 x SATA 3Gb/s connectors
6. 6 x SATA 6Gb/s connectors
7. 1 x CPU fan header
8. 2 x system fan header
9. 1 x North Bridge fan header
10. 1 x power fan header
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x CD In connector
14. 1 x S/PDIF In header
15. 1 x S/PDIF Out header
16. 1 x IEEE 1394a header
17. 3 x USB 2.0/1.1 headers
18. 1 x serial port header
19. 1 x parallel port header
20. 1 x clearing CMOS jumper
21. 1 x clearing CMOS button
22. 1 x power button
23. 1 x reset button

Back Panel Connectors

1. 1 x PS/2 keyboard/ mouse port
2. 1 x optical S/PDIF Out connector
3. 1 x coaxial S/PDIF out connector
4. 2 x IEEE 1394a port
5. 6 x USB 2.0/1.1 ports
6. 2 x USB 3.0/2.0 ports
7. 2 x eSATA/USB Combo connectors
8. 2 x RJ-45 port
9. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

I/O Controller

1. ITE IT8720 chip

H/W Monitoring System voltage detection

1. CPU/System temperature detection
2. CPU/System fan speed detection
3. CPU overheating warning
4. CPU/System fan fail warning
5. CPU/System fan speed control (Note 4)

BIOS

1. 2 x 8 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress BIOS Rescue
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune (Note 5)
8. Support for Easy Energy Saver
9. Support for Smart Recovery
10. Support for Auto Green
11. Support for ON/OFF Charge
12. Support for Q-Share

Bundle Software

1. Norton Internet Security (OEM version)

Operating System

1. Support for Microsoft Windows 7/ Vista/ XP

Form Factor

1. ATX Form Factor; 30.5cm x 24.4cm

GA-890GPA-UD3H




CPU

1. Support for Socket AM3 processors: AMD Phenom™ II processor / AMD Athlon™ II processor

Hyper Transport Bus

1. 5200 MT/s

Chipset

1. North Bridge: AMD 890GX
2. South Bridge: AMD SB850

Memory

1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
2. Dual channel memory architecture
3. Support for DDR3 2000(OC)/1333/1066 MHz memory modules

Integrated Memory

1. 128MB DDR3 SidePort memory

Onboard Graphics Integrated in the North Bridge:

1. 1 x D-Sub port
2. 1 x DVI-D port (Note 2)(Note 3)
3. 1 x HDMI port (Note 3)

Audio

1. Realtek ALC892 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for Dolby Home Theater
5. Support for S/PDIF In/Out
6. Support for CD In

LAN

1. 1 x Realtek 8111D chip (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16) (Note 4)
2. 1 x PCI Express x16 slot, running at x8 (PCIEX8) (Note 4)
3. 3 x PCI Express x1 slot (All PCI Express slots conform to PCI Express 2.0 standard.)
4. 2 x PCI slots

Multi-Graphics Technology

1. Support for ATI CrossFireX and Hybrid CrossFireX technologies

Storage Interface South Bridge:

1. 6 x SATA 6Gb/s connectors 6 supporting up to 6 SATA 6Gb/s devices
2. Support for SATA RAID 0, RAID 1, RAID 5, RAID 10, and JBOD

* SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration.

GIGABYTE SATA2 chip:

1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
2. 2 x SATA 3Gb/s connectors supporting up to 2 SATA 3Gb/s devices
3. Support for SATA RAID 0, RAID 1, and JBOD

iTE IT8720 chip:

1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB South Bridge:

1. Up to 12USB 2.0/1.1 ports (4 on the back panel, 8 via the USB brackets connected to the internal USB headers)

NEC D720200F1 chip:

1. Up to 2 USB 3.0 ports on the back panel

* USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration.
IEEE 1394 T.I. TSB43AB23 chip:

1. Up to 3 IEEE 1394a ports (1 on the back panel, 2 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x floppy disk drive connector
4. 1 x IDE connector
5. 6 x SATA 6Gb/s connectors
6. 2 x SATA 3Gb/s connectors
7. 1 x CPU fan header
8. 2 x system fan header
9. 1 x power fan header
10. 1 x front panel header
11. 1 x front panel audio header
12. 1 x CD In connector
13. 1 x S/PDIF In header
14. 1 x S/PDIF Out header
15. 2 x IEEE 1394a header
16. 4 x USB 2.0/1.1 headers
17. 1 x serial port header
18. 1 x clearing CMOS jumper

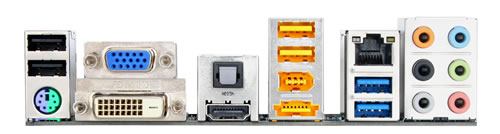

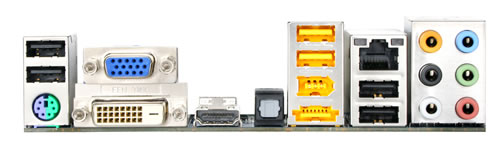

Back Panel Connectors

1. 1 x PS/2 keyboard port or PS/2 mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port (Note 2)
4. 1 x HDMI port (Note 2)
5. 1 x optical S/PDIF Out connector
6. 4 x USB 2.0/1.1 ports
7. 2 x USB 3.0/2.0 ports
8. 1 x IEEE 1394a port
9. 1 x RJ-45 port
10. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

I/O Controller

1. ITE IT8720 chip

H/W Monitoring

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System/Power fan speed detection
4. CPU overheating warning
5. CPU/System/Power fan fail warning
6. CPU/System fan speed control (Note 5)

BIOS

1. 2 x 8 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress BIOS Rescue
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune (Note 6)
8. Support for Easy Energy Saver
9. Support for Smart Recovery
10. Support for Auto Green
11. Support for On/Off Charge
12. Support for Q-Share

Bundle Software

1. Norton Internet Security (OEM version)

Operating System

1. Support for Microsoft Windows 7/ Vista/ XP

Form Factor

1. ATX Form Factor; 30.5cm x 24.4cm

GA-880GMA-UD2H




CPU

1. Support for Socket AM3 processors: AMD Phenom™ II processor / AMD Athlon™ II processor

Hyper Transport Bus

1. 5200 MT/s

Chipset

1. North Bridge: AMD 880G
2. South Bridge: AMD SB850

Memory

1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
2. Dual channel memory architecture
3. Support for DDR3 2000(OC)/1333/1066 MHz memory modules

Onboard Graphics North Bridge:

1. 1 x D-Sub port
2. 1 x DVI-D port (Note 2)(Note 3)
3. 1 x HDMI port (Note 3)

Audio

1. Realtek ALC892 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for Dolby Home Theater
5. Support for S/PDIF In/Out
6. Support for CD In

LAN

1. 1 x Realtek 8111D chip (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16) (Note 4)
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
3. 1 x PCI Express x1 slot (All PCI Express slots conform to PCI Express 2.0 standard.)
4. 1 x PCI slots

Multi-Graphics Technology

1. Support for ATI Hybrid CrossFireX technology

Storage Interface South Bridge:

1. 5 x SATA 6Gb/s connectors 6 supporting up to 5 SATA 6Gb/s devices
2. 1 x eSATA 3Gb/s connectors on the back panel supporting up to 1 SATA 3Gb/s device
3. Support for SATA RAID 0, RAID 1, RAID 5, RAID 10, and JBOD

* SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration.

JMicron JMB368 chip:

1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices

iTE IT8720 chip:

1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB South Bridge:

1. Up to 10USB 2.0/1.1 ports (4 on the back panel, 6 via the USB brackets connected to the internal USB headers)

NEC D720200F1 chip:

1. Up to 2 USB 3.0 ports on the back panel

* USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration.
IEEE 1394 T.I. TSB43AB23 chip:

1. Up to 2 IEEE 1394a ports (1 on the back panel, 2 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x floppy disk drive connector
4. 1 x IDE connector
5. 5 x SATA 6Gb/s connectors
6. 1 x CPU fan header
7. 1 x system fan header
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x CD In connector
11. 1 x S/PDIF In/Out header
12. 1 x IEEE 1394a header
13. 3 x USB 2.0/1.1 headers
14. 1 x serial port header
15. 1 x clearing CMOS jumper

Back Panel Connectors

1. 1 x PS/2 keyboard port or PS/2 mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port (Note 2)(Note 3)
4. 1 x HDMI port (Note 3)
5. 1 x optical S/PDIF Out connector
6. 1 x IEEE 1394a port
7. 4 x USB 2.0/1.1 ports
8. 1 x eSATA 6Gb/s connector
9. 2 x USB 3.0/2.0 ports
10. 1 x RJ-45 port
11. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

I/O Controller

1. ITE IT8720 chip

H/W Monitoring

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System/Power fan speed detection
4. CPU overheating warning
5. CPU/System/Power fan fail warning
6. CPU/System fan speed control (Note 5)

BIOS

1. 2 x 8 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress BIOS Rescue
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune (Note 6)
8. Support for Easy Energy Saver
9. Support for Smart Recovery
10. Support for Auto Green
11. Support for On/Off Charge
12. Support for Q-Share

Bundle Software

1. Norton Internet Security (OEM version)

Operating System

1. Support for Microsoft Windows 7/ Vista/ XP

Form Factor

1. Micro ATX; 24.4cm x 24.4cm

GA-880GA-UD3H




CPU

1. Support for Socket AM3 processors: AMD Phenom™ II processor / AMD Athlon™ II processor

Hyper Transport Bus

1. 5200 MT/s

Chipset

1. North Bridge: AMD 880G
2. South Bridge: AMD SB850

Memory

1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
2. Dual channel memory architecture
3. Support for DDR3 2000(OC)/1333/1066 MHz memory modules

Onboard Graphics North Bridge:

1. 1 x D-Sub port
2. 1 x DVI-D port (Note 2)(Note 3)
3. 1 x HDMI port (Note 3)

Audio

1. Realtek ALC892 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for Dolby Home Theater
5. Support for S/PDIF In/Out
6. Support for CD In

LAN

1. 1 x Realtek 8111D chip (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
3. 2 x PCI Express x1 slot (The PCIEX1_2 slot shares bandwidth with the PCIEX4 slot.) (Note 4)

4. (All PCI Express slots conform to PCI Express 2.0 standard.) 3 x PCI slots

Multi-Graphics Technology

1. Support for ATI Hybrid CrossFireX technology

Storage Interface South Bridge:

1. 6 x SATA 6Gb/s connectors 6 supporting up to 6 SATA 6Gb/s devices
2. Support for SATA RAID 0, RAID 1, RAID 5, RAID 10, and JBOD

* SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration.

GIGABYTE SATA2 chip:

1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
2. 2 x SATA 3Gb/s connectors supporting up to 2 SATA 3Gb/s devices
3. Support for SATA RAID 0, RAID 1, and JBOD

iTE IT8720 chip:

1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB South Bridge:

1. Up to 12USB 2.0/1.1 ports (4 on the back panel, 8 via the USB brackets connected to the internal USB headers)

NEC D720200F1 chip:

1. Up to 2 USB 3.0 ports on the back panel

* USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration.
IEEE 1394 T.I. TSB43AB23 chip:

1. Up to 3 IEEE 1394a ports (1 on the back panel, 2 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x floppy disk drive connector
4. 1 x IDE connector
5. 6 x SATA 6Gb/s connectors
6. 2 x SATA 3Gb/s connectors
7. 1 x CPU fan header
8. 2 x system fan header
9. 1 x power fan header
10. 1 x front panel header
11. 1 x front panel audio header
12. 1 x CD In connector
13. 1 x S/PDIF In header
14. 1 x S/PDIF Out header
15. 2 x IEEE 1394a header
16. 4 x USB 2.0/1.1 headers
17. 1 x serial port header
18. 1 x clearing CMOS jumper

Back Panel Connectors

1. 1 x PS/2 keyboard port or PS/2 mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port (Note 2)(Note 3)
4. 1 x HDMI port (Note 3)
5. 1 x optical S/PDIF Out connector
6. 4 x USB 2.0/1.1 ports
7. 2 x USB 3.0/2.0 ports
8. 1 x IEEE 1394a port
9. 1 x RJ-45 port
10. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

I/O Controller

1. ITE IT8720 chip

H/W Monitoring

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System/Power fan speed detection
4. CPU overheating warning
5. CPU/System/Power fan fail warning
6. CPU/System fan speed control (Note 5)

BIOS

1. 2 x 8 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress BIOS Rescue
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune (Note 6)
8. Support for Easy Energy Saver
9. Support for Smart Recovery
10. Support for Auto Green
11. Support for On/Off Charge
12. Support for Q-Share

Bundle Software

1. Norton Internet Security (OEM version)

Operating System

1. Support for Microsoft Windows 7/ Vista/ XP

Form Factor

1. ATX Form Factor; 30.5cm x 24.4cm

GA-880GM-D2H




CPU

1. Support for AM3 processors: AMD Phenom™ II processor/ AMD Athlon™ II processor

Hyper Transport Bus

1. 5200 MT/s

Chipset

1. North Bridge: AMD 880G
2. South Bridge: AMD SB710

Memory

1. 2 x 1.5V DDR3 DIMM sockets supporting up to 8GB of system memory (Note 1)
2. Dual channel memory architecture
3. Support for DDR3 1666 (OC)/1333/1066 MHz memory modules

Onboard Graphics Integrated in the North Bridge:

1. 1 x D-Sub port
2. 1 x DVI-D port (Note 2) (Note 3)
3. 1 x HDMI port (Note 3)

Audio

1. Realtek ALC888B codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF In/Out
5. Support for CD In

LAN

1. Realtek 8111D chip (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
2. 1 x PCI Express x1 slot (All PCI Express slots conform to PCI Express 2.0 standard.)
3. 2 x PCI slots

Storage Interface South Bridge:

1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
2. 4 x SATA 3Gb/s connectors supporting up to 5 SATA 3Gb/s devices
3. Support for SATA RAID 0, RAID 1, RAID 10 and JBOD

iTE IT8718 chip:

1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB South Bridge:

1. Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 1 x floppy disk drive connector
4. 1 x IDE connector
5. 4 x SATA 3Gb/s connectors
6. 1 x CPU fan header
7. 1 x system fan header
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x CD In connector
11. 1 x S/PDIF In/Out header
12. 2 x USB 2.0/1.1 headers
13. 1 x serial port header
14. 1 x clearing CMOS jumper

Back Panel Connectors

1. 1 x PS/2 keyboard port or PS/2 mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port (Note 2)(Note 3)
4. 1 x HDMI port (Note 3)
5. 8 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks (Line Out/Line in/Microphone)

I/O Controller

1. ITE IT8718 chip

H/W Monitoring

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU overheating warning
5. CPU/System/Power fan fail warning
6. CPU/System fan speed control (Note 5)

BIOS

1. 2 x 8 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress BIOS Rescue
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune (Note 6)
8. Support for Smart Recovery
9. Support for Q-Share
10. Support for Auto Green
11. Support for On/Off Charge

Bundle Software

1. Norton Internet Security (OEM version)

Operating System

1. Support for Microsoft Windows 7/Vista/ XP

Form Factor

1. Micro ATX Form Factor; 24.4cm x 22.0cm

GA-880GM-UD2H




CPU

1. Support for AM3 processors: AMD Phenom™ II processor/ AMD Athlon™ II processor

Hyper Transport Bus

1. 5200 MT/s

Chipset

1. North Bridge: AMD 880G
2. South Bridge: AMD SB710

Memory

1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
2. Dual channel memory architecture
3. Support for DDR3 1800 (OC)/1666/1333/1066 MHz memory modules (Note 2)

Onboard Graphics Integrated in the North Bridge:

1. 1 x D-Sub port
2. 1 x DVI-D port (Note 3) (Note 4)
3. 1 x HDMI port (Note 4)

Audio

1. Realtek ALC892 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for Dolby Home Theater
5. Support for S/PDIF In/Out
6. Support for CD In

LAN

1. Realtek 8111D chip (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCI Express x16 slot conforms to PCI Express 2.0 standard.)
2. 1 x PCI Express x1 slot
3. 2 x PCI slots

Multi-Graphics Technology

1. Support for ATI Hybrid CrossFireX™ technology

Storage Interface South Bridge:

1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
2. 5 x SATA 3Gb/s connectors supporting up to 5 SATA 3Gb/s devices
3. 1 x eSATA 3Gb/s port on the back panel supporting up to 1 SATA 3Gb/s device
4. Support for SATA RAID 0, RAID 1, RAID 10 and JBOD

iTE IT8720 chip:

1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB South Bridge:

1. Up to 12 USB 2.0/1.1 ports (6 on the back panel, 6 via the USB brackets connected to the internal USB headers)

IEEE 1394 T.I. TSB43AB23 chip:

1. Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x floppy disk drive connector
4. 1 x IDE connector
5. 5 x SATA 3Gb/s connectors
6. 1 x CPU fan header
7. 1 x system fan header
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x CD In connector
11. 1 x S/PDIF In/Out header
12. 3 x USB 2.0/1.1 headers
13. 1 x IEEE 1394a header
14. 1 x serial port header
15. 1 x clearing CMOS jumper

Back Panel Connectors

1. 1 x PS/2 keyboard port or PS/2 mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port (Note 3)(Note 4)
4. 1 x HDMI port (Note 4)
5. 1 x optical S/PDIF Out connector
6. 1 x eSATA 3Gb/s port
7. 1 x IEEE 1394a port
8. 6 x USB 2.0/1.1 ports
9. 1 x RJ-45 port
10. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

I/O Controller

1. ITE IT8720 chip

H/W Monitoring

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU overheating warning
5. CPU/System/Power fan fail warning
6. CPU/System fan speed control (Note 5)

BIOS

1. 2 x 8 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress BIOS Rescue
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune (Note 6)
8. Support for Easy Energy Saver
9. Support for Time Repare
10. Support for Q-Share
11. Support for Auto Green

Bundle Software

1. Norton Internet Security (OEM version)

Operating System

1. Support for Microsoft Windows 7/Vista/ XP

Form Factor

1. Micro ATX Form Factor; 24.4cm x 24.4cm

GA-880G-UD3H




CPU

1. Support for Socket AM3 processors: AMD Phenom™ II processor / AMD Athlon™ II processor

Front Side Bus

1. 5200 MT/s

Chipset

1. North Bridge: AMD 880G
2. South Bridge: AMD SB710

Memory

1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
2. Dual channel memory architecture
3. Support for DDR3 1866(OC)/1333/1066 MHz memory modules (Note 2)

Onboard Graphics North Bridge:

1. 1 x D-Sub port
2. 1 x DVI-D port (Note 3)(Note 4)
3. 1 x HDMI port (Note 4)

Audio

1. Realtek ALC892 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for Dolby Home Theater
5. Support for S/PDIF In/Out
6. Support for CD In

LAN

1. 1 x Realtek 8111D chip (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
3. 3 x PCI Express x1 slot (The PCIEX1_2 and PCIEX1_3 slot shares bandwidth with the PCIEX4 slot.) (Note 5)
(All PCI Express slots conform to PCI Express 2.0 standard.)
4. 2 x PCI slots

Multi-Graphics Technology

1. Support for ATI Hybrid CrossFireX technology

Storage Interface South Bridge:

1. 1 x IDE Connector supporting ATA-133/100/66/33 and up to 2 IDE devices
2. 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
3. Support for SATA RAID 0, RAID 1, RAID 10, and JBOD

iTE IT8718 chip:

1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB South Bridge:

1. Up to 12USB 2.0/1.1 ports (6 on the back panel, 6 via the USB brackets connected to the internal USB headers)

IEEE 1394 T.I. TSB43AB23 chip:

1. Up to 3 IEEE 1394a ports (1 on the back panel, 2 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x floppy disk drive connector
4. 1 x IDE connector
5. 6 x SATA 3Gb/s connectors
6. 1 x CPU fan header
7. 2 x system fan header
8. 1 x power fan header
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x CD In connector
12. 1 x S/PDIF In/Out header
13. 2 x IEEE 1394a header
14. 4 x USB 2.0/1.1 headers
15. 1 x serial port header
16. 1 x parallel port header
17. 1 x power LED header
18. 1 x chassis intrusion header
19. 1 x clearing CMOS jumper

Back Panel Connectors

1. 1 x PS/2 keyboard port or PS/2 mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port (Note 3)(Note 4)
4. 1 x HDMI port (Note 4)
5. 1 x optical S/PDIF Out connector
6. 6 x USB 2.0/1.1 ports
7. 1 x IEEE 1394a port
8. 1 x RJ-45 port
9. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

I/O Controller

1. ITE IT8718 chip

H/W Monitoring

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System/Power fan speed detection
4. CPU overheating warning
5. CPU/System/Power fan fail warning
6. CPU/System fan speed control (Note 6)

BIOS

1. 2 x 8 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress BIOS Rescue
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune (Note 7)
8. Support for Easy Energy Saver
9. Support for Smart Recovery
10. Support for Auto Green
11. Support for Q-Share

Bundle Software

1. Norton Internet Security (OEM version)

Operating System

1. Support for Microsoft Windows 7/ Vista/ XP

Form Factor

1. ATX Form Factor; 30.5cm x 22.9cm

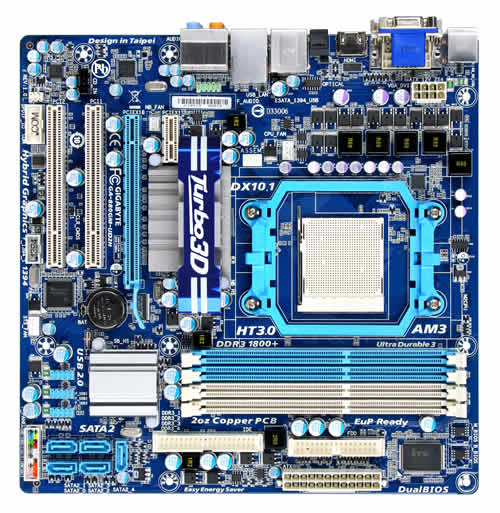

GA-880GM-USB3




CPU

1. Support for AM3 processors: AMD Phenom™ II processor/ AMD Athlon™ II processor

Hyper Transport Bus

1. 5200 MT/s

Chipset

1. North Bridge: AMD 880G
2. South Bridge: AMD SB710

Memory

1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
2. Dual channel memory architecture
3. Support for DDR3 1800 (OC)/1666/1333/1066 MHz memory modules (Note 2)

Onboard Graphics Integrated in the North Bridge:

1. 1 x D-Sub port
2. 1 x DVI-D port (Note 3) (Note 4)
3. 1 x HDMI port (Note 4)

Audio

1. Realtek ALC892 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for Dolby Home Theater
5. Support for S/PDIF In/Out
6. Support for CD In

LAN

1. Realtek 8111D chip (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCI Express x16 slot conforms to PCI Express 2.0 standard.)
2. 1 x PCI Express x1 slot
3. 2 x PCI slots

Storage Interface South Bridge:

1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
2. 5 x SATA 3Gb/s connectors supporting up to 5 SATA 3Gb/s devices
3. 1 x eSATA 3Gb/s port on the back panel supporting up to 1 SATA 3Gb/s device
4. Support for SATA RAID 0, RAID 1, RAID 10 and JBOD

iTE IT8720 chip:

1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB South Bridge:

1. Up to 12 USB 2.0/1.1 ports (Note 5) (6 on the back panel, 6 via the USB brackets connected to the internal USB headers)

NEC D720200F1 chip:

1. Up to 2 USB3.0 ports on the back panel

IEEE 1394 T.I. TSB43AB23 chip:

1. Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x floppy disk drive connector
4. 1 x IDE connector
5. 5 x SATA 3Gb/s connectors
6. 1 x CPU fan header
7. 1 x system fan header
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x CD In connector
11. 1 x S/PDIF In/Out header
12. 3 x USB 2.0/1.1 headers
13. 1 x IEEE 1394a header
14. 1 x serial port header
15. 1 x clearing CMOS jumper

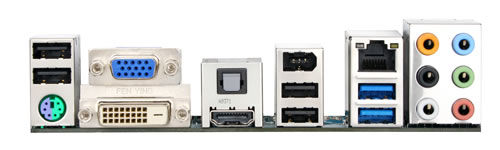

Back Panel Connectors

1. 1 x PS/2 keyboard port or PS/2 mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port (Note 3)(Note 4)
4. 1 x HDMI port (Note 4)
5. 1 x optical S/PDIF Out connector
6. 1 x eSATA 3Gb/s port
7. 1 x IEEE 1394a port
8. 4 x USB 2.0/1.1 ports
9. 2 x USB 3.0/2.0 ports
10. 1 x RJ-45 port
11. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

I/O Controller

1. ITE IT8720 chip

H/W Monitoring

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU overheating warning
5. CPU/System/Power fan fail warning
6. CPU/System fan speed control (Note 6)

BIOS

1. 2 x 8 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress BIOS Rescue
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune (Note 7)
8. Support for Easy Energy Saver
9. Support for Time Repare
10. Support for Q-Share
11. Support for Auto Green

Bundle Software

1. Norton Internet Security (OEM version)

Operating System

1. Support for Microsoft Windows 7/Vista/ XP

Form Factor

1. Micro ATX Form Factor; 24.4cm x 24.4cm

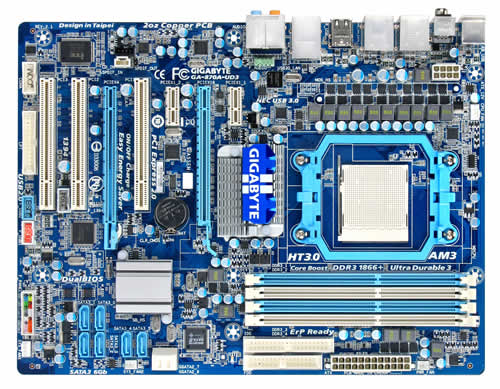

GA-870A-UD3




CPU

1. Support for Socket AM3 processors: AMD Phenom™ II processor / AMD Athlon™ II processor

Hyper Transport Bus

1. 5200 MT/s

Chipset

1. North Bridge: AMD 870
2. South Bridge: AMD SB850

Memory

1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
2. Dual channel memory architecture
3. Support for DDR3 2000(OC)/1333/1066 MHz memory modules

Audio

1. Realtek ALC892 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for Dolby Home Theater
5. Support for S/PDIF In/Out
6. Support for CD In

LAN

1. 1 x Realtek 8111D chip (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4) (Note 2)
3. 2 x PCI Express x1 slots (The PCIEX1_1 and PCIEX1_2 slots share bandwidth with the PCIEX4 slot.) (Note 2)
(All PCI Express slots conform to the PCI Express 2.0 standard.)
4. 3 x PCI slots

Storage Interface South Chipset:

1. 6 x SATA 6Gb/s connectors supporting up to 6 SATA 6Gb/s devices
2. Support for SATA RAID 0, RAID 1, RAID5, RAID 10, and JBOD

* SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration.

GIGABYTE SATA2 chip:

1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
2. 2 x SATA 3Gb/s connectors supporting up to 2 SATA 3Gb/s devices
3. Support for SATA RAID 0 and RAID 1 and JBOD

JMicron JMB362 chip:

1. 2 x eSATA 3Gb/s connectors on the back panel supporting up to 2 SATA 3Gb/s devices
2. Support for SATA RAID 0, RAID 1, and JBOD

iTE IT8720 chip:

1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB Chipset:

1. Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)

NEC chip:

1. Up to 2 USB 3.0/2.0 ports on the back panel

* USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration.
IEEE 1394 T.I. TSB43AB23 chip:

1. Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x floppy disk drive connector
4. 1 x IDE connector
5. 6 x SATA 6Gb/s connectors
6. 2 x SATA 3Gb/s connectors
7. 1 x CPU fan header
8. 2 x system fan header
9. 1 x power fan header
10. 1 x front panel header
11. 1 x front panel audio header
12. 1 x CD In connector
13. 1 x S/PDIF In header
14. 1 x S/PDIF Out header
15. 1 x IEEE 1394a header
16. 2 x USB 2.0/1.1 headers
17. 1 x serial port header
18. 1 x parallel port header
19. 1 x clearing CMOS jumper

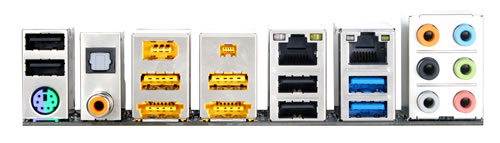

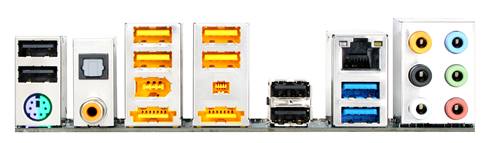

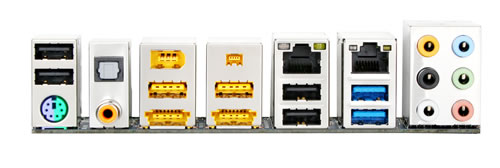

Back Panel Connectors

1. 1 x PS/2 keyboard or mouse port
2. 1 x optical S/PDIF Out connector
3. 1 x coaxial S/PDIF out connector
4. 8 x USB 2.0/1.1 ports
5. 2 x USB 3.0/2.0 ports
6. 2 x IEEE 1394a port
7. 2 x eSATA 3Gb/s ports
8. 1 x RJ-45 port
9. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

I/O Controller

1. ITE IT8720 chip

H/W Monitoring

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System/Power fan speed detection
4. CPU overheating warning
5. CPU/System/Power fan fail warning
6. CPU/System fan speed control (Note 3)

BIOS

1. 2 x 8 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress BIOS Rescue
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune (Note 4)
8. Support for Easy Energy Saver
9. Support for Smart Recovery
10. Support for Auto Green
11. Support for On/Off Charge
12. Support for Q-Share

Bundle Software

1. Norton Internet Security (OEM version)

Operating System

1. Support for Microsoft Windows 7/ Vista/ XP

Form Factor

1. ATX Form Factor; 30.5cm x 23.0 cm

[over@z]

BIOS

GA-890FXA-UD7

F5b: http://download.gigabyte.ru/bios/mb_...7_v2.x_f5b.exe

F4: http://download.gigabyte.ru/bios/mb_...d7_v2.x_f4.exe

GA-890FXA-UD5

F6: http://download.gigabyte.ru/bios/mb_...d5_v2.x_f6.exe

F5: http://download.gigabyte.ru/bios/mb_...d5_v2.x_f5.exe

F4: http://download.gigabyte.ru/bios/mb_...d5_v2.x_f4.exe

F3: http://download.gigabyte.ru/bios/mb_...d5_v2.1_f3.exe

GA-890GPA-UD3H

FF: http://download.gigabyte.ru/bios/mb_...3h_v2.x_ff.exe

FGA: http://download.gigabyte.ru/bios/mb_...h_v2.x_fga.exe

FE: http://download.gigabyte.ru/bios/mb_...3h_v2.x_fe.exe

FD: http://download.gigabyte.ru/bios/mb_...3h_v2.x_fd.exe

FC: http://download.gigabyte.ru/bios/mb_...3h_v2.1_fc.exe

GA-880GMA-UD2H

F5: http://download.gigabyte.ru/bios/mb_...h_v.2.x_f5.exe

F4: http://download.gigabyte.ru/bios/mb_...h_v.2.x_f4.exe

F3: http://download.gigabyte.ru/bios/mb_...h_v.2.1_f3.exe

GA-880GA-UD3H

F7: http://download.gigabyte.ru/bios/mb_...h_v.2.x_f7.exe

F6: http://download.gigabyte.ru/bios/mb_...h_v.2.x_f6.exe

F5: http://download.gigabyte.ru/bios/mb_...h_v.2.x_f5.exe

F4: http://download.gigabyte.ru/bios/mb_...h_v.2.x_f4.exe

F3: http://download.gigabyte.ru/bios/mb_...h_v.2.1_f3.exe

GA-880GM-D2H

F6: http://download.gigabyte.ru/bios/mb_...h_v.1.3_f6.exe

F5: http://download.gigabyte.ru/bios/mb_...h_v.1.3_f5.exe

F4: http://download.gigabyte.ru/bios/mb_...h_v.1.3_f4.exe

F3: http://download.gigabyte.ru/bios/mb_...h_v.1.3_f3.exe

F2: http://download.gigabyte.ru/bios/mb_...h_v.1.3_f2.exe

F1: http://download.gigabyte.ru/bios/mb_...h_v.1.3_f1.exe

GA-880GM-UD2H

F8: http://download.gigabyte.ru/bios/mb_...gm-ud2h_f8.exe

F7: http://download.gigabyte.ru/bios/mb_...gm-ud2h_f7.exe

F6: http://download.gigabyte.ru/bios/mb_...gm-ud2h_f6.exe

F5: http://download.gigabyte.ru/bios/mb_...gm-ud2h_f5.exe

F4: http://download.gigabyte.ru/bios/mb_...gm-ud2h_f4.exe

F3: http://download.gigabyte.ru/bios/mb_...gm-ud2h_f3.exe

F2: http://download.gigabyte.ru/bios/mb_...gm-ud2h_f2.exe

GA-880G-UD3H

F4: http://download.gigabyte.ru/bios/mb_...0g-ud3h_f4.exe

F3: http://download.gigabyte.ru/bios/mb_...0g-ud3h_f3.exe

F2: http://download.gigabyte.ru/bios/mb_...0g-ud3h_f2.exe

F1: http://download.gigabyte.ru/bios/mb_...0g-ud3h_f1.exe

GA-880GM-USB3

F8: http://download.gigabyte.ru/bios/mb_...gm-usb3_f8.exe

F7: http://download.gigabyte.ru/bios/mb_...gm-usb3_f7.exe

F6: http://download.gigabyte.ru/bios/mb_...gm-usb3_f6.exe

F5: http://download.gigabyte.ru/bios/mb_...gm-usb3_f5.exe

F4: http://download.gigabyte.ru/bios/mb_...gm-usb3_f4.exe

F3: http://download.gigabyte.ru/bios/mb_...gm-usb3_f3.exe

F2: http://download.gigabyte.ru/bios/mb_...gm-usb3_f2.exe

GA-870A-UD3

F3D: http://download.gigabyte.ru/bios/mb_..._v.2.x_f3d.exe

F2: http://download.gigabyte.ru/bios/mb_...3_v.2.1_f2.exe

[neogene]

Iscritto, in arrivo GA-880GMA-UD2H a giorni.

[over@z]

complimenti per l'acquisto

io possiedo la gm-ud2h ma non capisco perchè gigabyte non ha messo il side port con 128mb ddr3 cosi non prelevava memoria dal sistema

vabbe tutto sommato nessun problema e in oc sale bene

[ALIEN3]

Presente con una Gigabyte 880GMA UD2H arrivata qualche giorno fà


byezzzzzzzzzzzzzzzzzzzzzzz

[over@z]

grande ragazzi...mandatemi via mp le vostre ram con timings e frequenze cosi creo una sezione ram

[neogene]

Originariamente inviato da over@z

grande ragazzi...mandatemi via mp le vostre ram con timings e frequenze cosi creo una sezione ram

Molto volentieri, appena mi arriva il pacco ...

[ALIEN3]

stavo vedendo il thead asrock della serie 8. Volendo si potrebbe impostarlo simile per rendere la pagina iniziale più sobria ma funzionale. Direi che potremmo fare così:

Nome Mobo
- Foto
- Link: Overview\Specification\Drivers\Bios
- Compatibilità Ram
- Review

Segnalo il 3d ai moderatori così lo mettono tra i link ufficiali.

Byezzzzzzzzzzzzzzzzzzz

[ALIEN3]

GA-880GMA-UD2H (2.0\2.1)



Overview - Specification - Drivers - Bios (ultima versione F4)

Alcune recensioni:
http://www.hwmania.org/articoli/1351...a-880gma-ud2h/ (in ITA)
http://www.bit-tech.net/hardware/mot...-ud2h-review/1
http://www.hardwaresecrets.com/artic...erboard/1077/1

Una cosa di questo tipo.

byezzzzzzzzzzzzzzzzzzzzzzzzz

[stek23]

ho bisogno di un informazione tecnica:
nella gigabyte 890gpa ud3h è indifferente mettere una sola vga nel primo o nel secondo slot pci?
singolarmente vanno tutti e due a 16x?
grazie!

[Eugenio_30]

Ciao a tutti, volevo aggiungere della RAm al computer in Sign.
Purtroppo non posso mettere altre GBRM perchè il dissipatore è troppo alto e tocca con l'arctic.
Ci sono RAm più basse con prestazioni simili ?!?!?
Io pensavo alle F3-12800CL7D-4GBECO (2Gx2) .
Ma ho due domande.
- Hanno un alimentazione richiesta di 1.3V contro le 1.6V delle altre.....funzioneranno??
- Sono più bassi delle Ripjaws?

Altrimenti cosa mi consigliereste?

[over@z]

ciao ragazzi per motivi di lavoro ho poco tempo però dalla settimana prox metto moltissime cose come suggerisce alien

[neogene]

Originariamente inviato da Eugenio_30

Ciao a tutti, volevo aggiungere della RAm al computer in Sign.
Purtroppo non posso mettere altre GBRM perchè il dissipatore è troppo alto e tocca con l'arctic.
Ci sono RAm più basse con prestazioni simili ?!?!?
Io pensavo alle F3-12800CL7D-4GBECO (2Gx2) .
Ma ho due domande.
- Hanno un alimentazione richiesta di 1.3V contro le 1.6V delle altre.....funzioneranno??
- Sono più bassi delle Ripjaws?

Altrimenti cosa mi consigliereste?

Io ho le ram di cui chiedi info... mi funzionano correttamente, hanno un dissipatore standard (due placchette di alluminio). Però non so se a 1.6v funzionino.

[stek23]

Originariamente inviato da Eugenio_30

Ciao a tutti, volevo aggiungere della RAm al computer in Sign.
Purtroppo non posso mettere altre GBRM perchè il dissipatore è troppo alto e tocca con l'arctic.
Ci sono RAm più basse con prestazioni simili ?!?!?
Io pensavo alle F3-12800CL7D-4GBECO (2Gx2) .
Ma ho due domande.
- Hanno un alimentazione richiesta di 1.3V contro le 1.6V delle altre.....funzioneranno??
- Sono più bassi delle Ripjaws?

Altrimenti cosa mi consigliereste?

io ho la tua stessa configurazione.si puo' impostare il voltaggio in manuale a 1.35 ma io per farle andare a 1600 e timing di default devo dare uno step in piu' di voltaggio!
cmq non ho mai avuto problemi!
le ram sono basse ci puoi montare benissimo dissipatori molto grandi.

[ban8]

ragazzi sto per comprare un nuovo pc , come mobo ho scelto la Gigabyte GA-890GPA-UD3H. Volevo sapere se questi 2 tipi d ram sono compatibili...

-Kingston DDR3 4GB 1333Mhz HyperX KIT (2x2) CL7 XMP (KHX1333C7D3K2/4GX) € 89,00
-G.SKILL DDR3 4GB PC1600 CL7 KIT (2x2GB) G.Skill 4GBRM € 91,00
-Kingston KH1600C9AD3K24G - 4GB 1600MHZ DDR3 NON-ECC CL9 DIMM € 89,00

affiancherò il tutto a un 1055t , quindi vorrei anche sapere da voi se , nel caso facessi un po d oc , è meglio andare sulle 1600 (cl7 o cl9) o restare sulle 1333 (cl7).

grazie in anticipo

Originariamente inviato da ban8

ragazzi sto per comprare un nuovo pc , come mobo ho scelto la Gigabyte GA-890GPA-UD3H. Volevo sapere se questi 2 tipi d ram sono compatibili...

-Kingston DDR3 4GB 1333Mhz HyperX KIT (2x2) CL7 XMP (KHX1333C7D3K2/4GX) € 89,00
-G.SKILL DDR3 4GB PC1600 CL7 KIT (2x2GB) G.Skill 4GBRM € 91,00
-Kingston KH1600C9AD3K24G - 4GB 1600MHZ DDR3 NON-ECC CL9 DIMM € 89,00

affiancherò il tutto a un 1055t , quindi vorrei anche sapere da voi se , nel caso facessi un po d oc , è meglio andare sulle 1600 (cl7 o cl9) o restare sulle 1333 (cl7).

grazie in anticipo

Le G.SKILL sono ottime

[Eugenio_30]

Originariamente inviato da stek23

io ho la tua stessa configurazione.si puo' impostare il voltaggio in manuale a 1.35 ma io per farle andare a 1600 e timing di default devo dare uno step in piu' di voltaggio!
cmq non ho mai avuto problemi!
le ram sono basse ci puoi montare benissimo dissipatori molto grandi.

Quindi posso impostare due banchi a 1.35/1.4 egli altri due a 1.6 come sono di default?

[stek23]

Originariamente inviato da Eugenio_30

Quindi posso impostare due banchi a 1.35/1.4 egli altri due a 1.6 come sono di default?

allora non avevo capito bene..devi aggiungere dei banchi alle ram che ia hai?

[ban8]

qualcuno sa le differenze prestazionali tra queste 2 schede ?
Gigabyte GA-890XA-UD3
Gigabyte GA-890GPA-UD3H
io l'unica cosa che ho capito che la GA-890XA-UD3 ha il chipset 790x e non ha la grafica integrata.
Invece la GA-890GPA-UD3H ha il 890gx con grafica integrata ....
ma apparte queste 2 differenze poi in prestazioni e in qualità sono uguali ?
quale sarebbe la scelta migliore ?
grazie

[ALIEN3]

La caratteristica principale è l'alimentazione:
- la GA-890XA-UD3 8+2 fasi
- la GA-890GPA-UD3H 4+1 fasi

Quindi la prima, nonostante abbia un chipset più "vecchio", sarà sicuramente più stabile in overclock.


Byezzzzzzzzzzzzzzzzzzz
