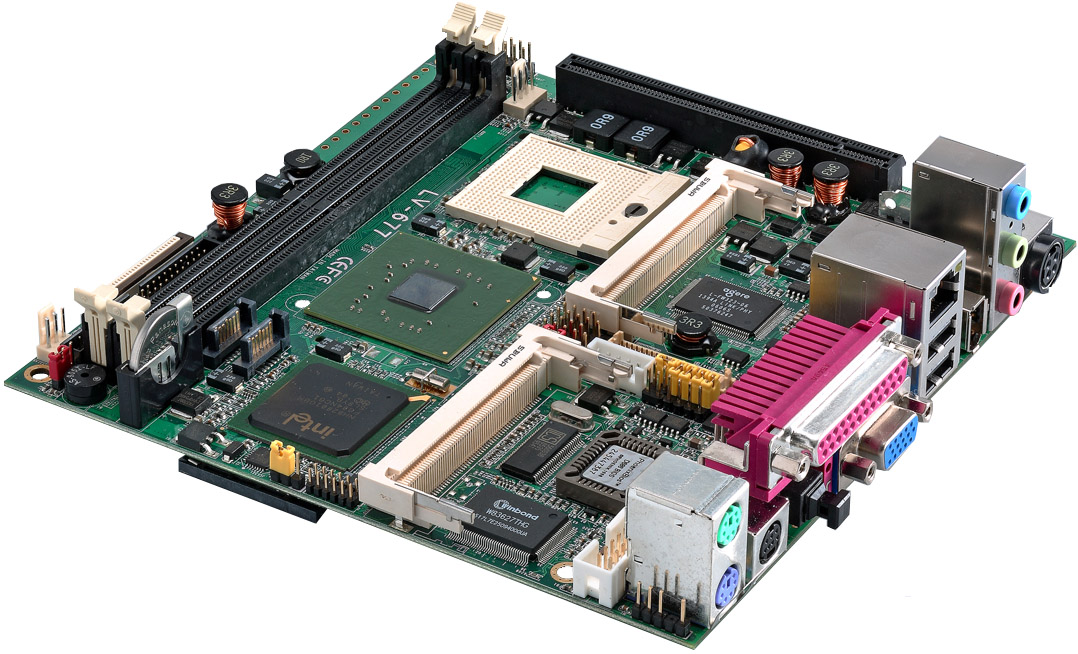

Commell LV-677 * Intel CoreTM Duo / Core 2 Duo Mini-ITX express Motherboard

[gava]

Visto che non è molto conosciuta, e visto che me la son comprata, vi presento questo gioiellino

Specifiche

LV-677 Features

* CPU: Intel Core Duo and Intel Core Solo processors @ 667MHz FSB.
* Memory: 2 x 240 pin DDR2 533/667MHz up to 4.0GB.
* Chipset: Intel 945GM and ICH7-M.
* VGA Interface: Intel 945GM integrated GMA 950 Technology.
* LVDS Interface: 18-bit dual channel LVDS interface. Supports up to WUXGA panel resolution.
* TV out: HDTV built-in.
* LAN Interface: Intel 82537L PCIE Giga LAN.
* PCI Enhanced IDE: UltraATA100 IDE up to 2 ATAPI.
* Serial ATA: Integrated Serial ATA controller facilitates high-speed data transfers at up to 150 MB/s for each of 2 ports.
* Audio: Intel ICH7-M integrated with Realtek ALC880 High Definition Audio.
* I/O Ports: 1 x RS232 and 1 x RS232/422/485 Serial Ports, 1 x Parallel port, 6 x USB2.0 ports, 1 x DB15 VGA port, 1 x IEEE1394, 1 x PS/2 keyboard and mouse ports.
* Extended Interface: One PCI Express x 16 bus add-in card connector, 2 x Mini-PCI socket.
* SSD: IDE1 supports DOM & 1 x CompactFlash socket.
* GPIO Interface: Onboard programmable 8-bit Digital I/O interface.
* Power supply: ATX or DC 9~21V used only.


"About Mini-ITXexpress
Mini-ITXexpress is based on Mini-ITX , but equipped with the PCI Express bus add-in card connector, Giga LAN, USB 2.0 and SerialATA for high speed drives."

[khael]

sembra interessante, ma qnt costa?

[gava]

temo troppo, sulle 250e/300e

io personalmente l'ho presa usata a 150e
